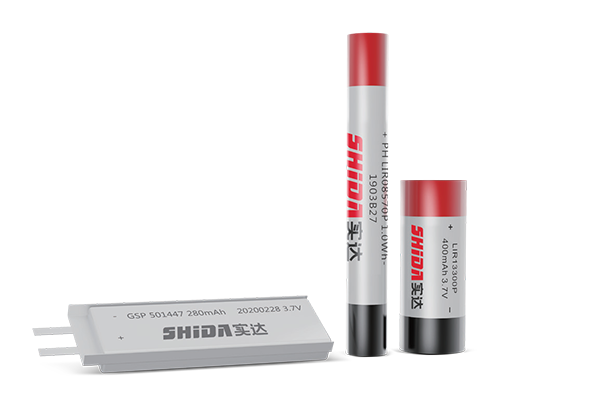

Electronic cigarettes

Electronic cigarettes

Excellent safety performance: passed SJ/T11796 test standard
High volumetric energy ratio: volumetric energy up to 370Wh/L
High rate: support 10-40C discharge
Long cycle life: support rate discharge 5000 cycles
Low self-consumption: The storage voltage drop at room temperature ≤ 0.7mV/day
Fast charging: Support 15C fast charging
Electronic cigarettes

Applications

  • • Heavy electricity consumers in industrial parks, intelligent parks, production factories, etc.,
  • • Having independent transformers in areas with significant differences in local peak and off-peak electricity prices
  • • Having independent transformers in areas with significant differences in local peak and off-peak electricity prices
  • Industry Parks

    Industry Parks

  • Intelligent Parks

    Intelligent Parks

Customer Value

Peak-to-valley price arbitrage

Helping users charge during low electricity prices and discharge during high electricity prices, generating profits from the price difference between peak and off-peak electricity, and saving electricity costs. At the same time, it can also avoid the risk of power outages or load shedding.

Capacity management, reducing demand-based electricity prices

For commercial and industrial users, there are three stages of billing based on variable container capacity, cooperative maximum capacity, and actual maximum capacity. After purchasing an energy storage system, enterprises can charge during low electricity demand periods and discharge during high electricity demand periods, thereby reducing peak power and maximum demand, smoothing the power consumption curve, and reducing capacity-based electricity prices.

Demand response, power ancillary services

Jiangsu, Hunan, Anhui, and other regions have successively introduced new market rules for power ancillary services, optimizing the participation of energy storage in deep peak shaving transactions, which has become a rapidly growing trend in energy storage development. This stimulates the competition vitality of energy storage participating in the ancillary service market, establishes access conditions for participating in ancillary services, and allows energy storage power stations to choose their own participation models.

Core Advantages

Safety is the first design principle

Easy to Installed

Over 200 design technologies and over 1300 quality control points have been adopted from cell to module and system, covering electrical principles, structural design, thermal management, fire suppression, environment, functional safety, and other design and verification systems to meet the overall safety and reliability requirements.

Insured by China People's Insurance Company

Single compensation limit of 10 million, cumulative compensation limit of 20 million.
China People's Insurance Company: PZAI202344010000009949.

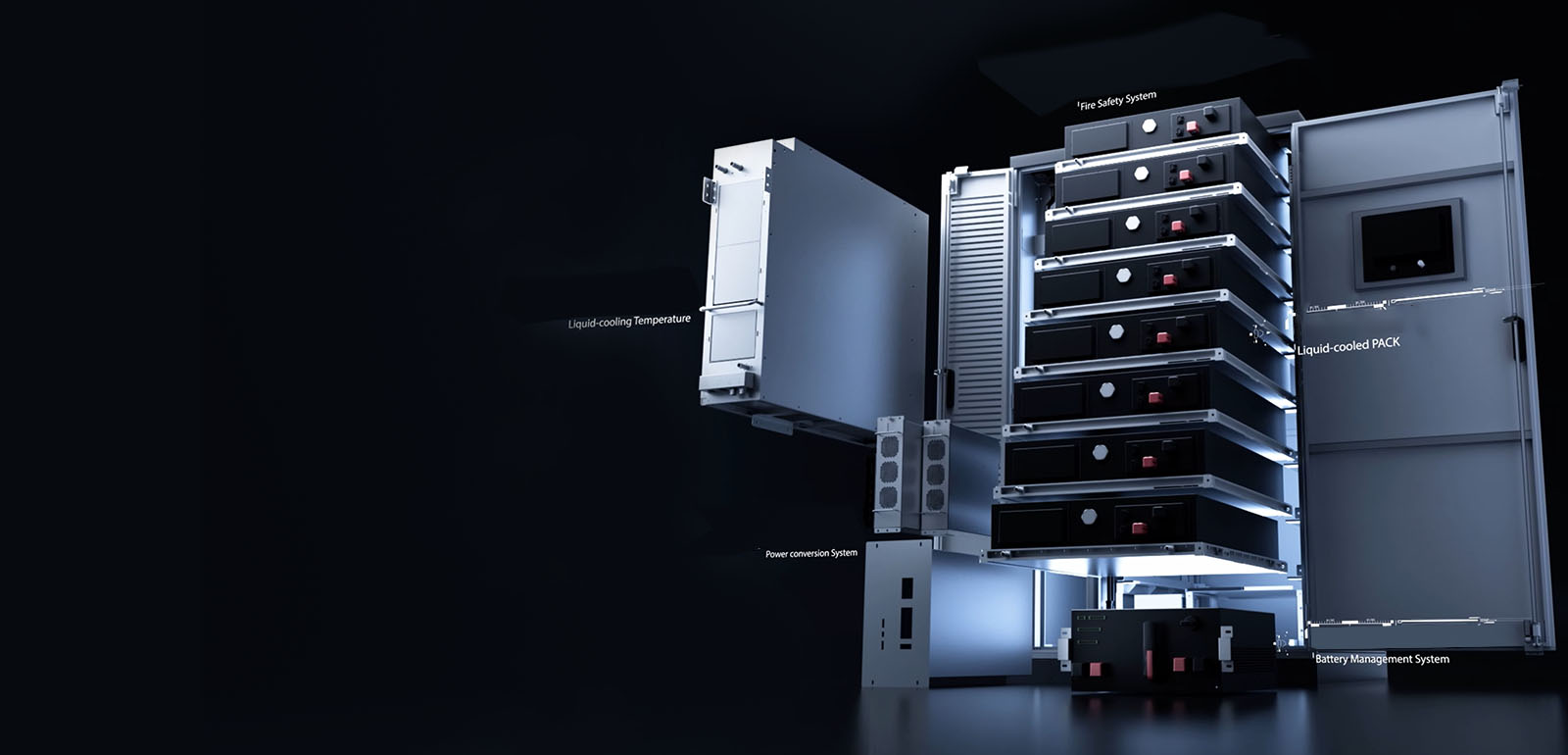

Ultimate safety system

ULTIMATE SECURITY SYSTEM

1. Cell materials and product technology
  • Invention patent: Flame-retardant Electrolyte Technology
  • LFP material with high safety
  • Pass multiple world class certifications:GB/T36276, IEC6219, IEC60730, UL1973, UL9540A
2. PACK/module security design
  • Invention patent: protection system of enhancing the thermal 202210215093 . 4
    (fire detection/control safety/level 3 fault judgment)
  • Modular safety design to prevent short circuit caused by transportation and installation accidents
  • PACK passed the UL9540A at one time
  • Protection level:IP65
3.Design for enhancing the thermal
  • Optimizing thermal insulation material / battery pressure relief valve design / metal shell upper cover which can resistant high temperature
  • Pass UL9540A,meet the three level fire protection(fire suppression within the pack/gas fire suppression within the conbinet/water fire protection)
4.Automatic fire alarm
5.Overall protection: IP55/56
High Efficiency

HIGH EFFICIENCY

  • Efficiency of the cell ≥ 95.5%
  • Efficiency of the system ≥ 90%
  • (Under standard working condition, room temperature of 25℃)
Long Cycle Life

LONG CYCLE LIFE

  • The temperature difference of the cells within the same PACK is less than 1.6℃, and the cycle of cell is increased by 30%.
  • Service life of 15 years under standard working condition
  • After 10 years of operation, there is still 70% of energy retention rate.
Easy to Installed

EASY TO INSTALL

  • Seamless switch from grid to off-grid, automatic power supply during power outages, ensuring uninterrupted work
  • Prevent the reverse flow of electric energy
  • Easy to install:Small footprint/no special foundation required
  • Equipment in parallel can cover a power range of 50KW-1MW

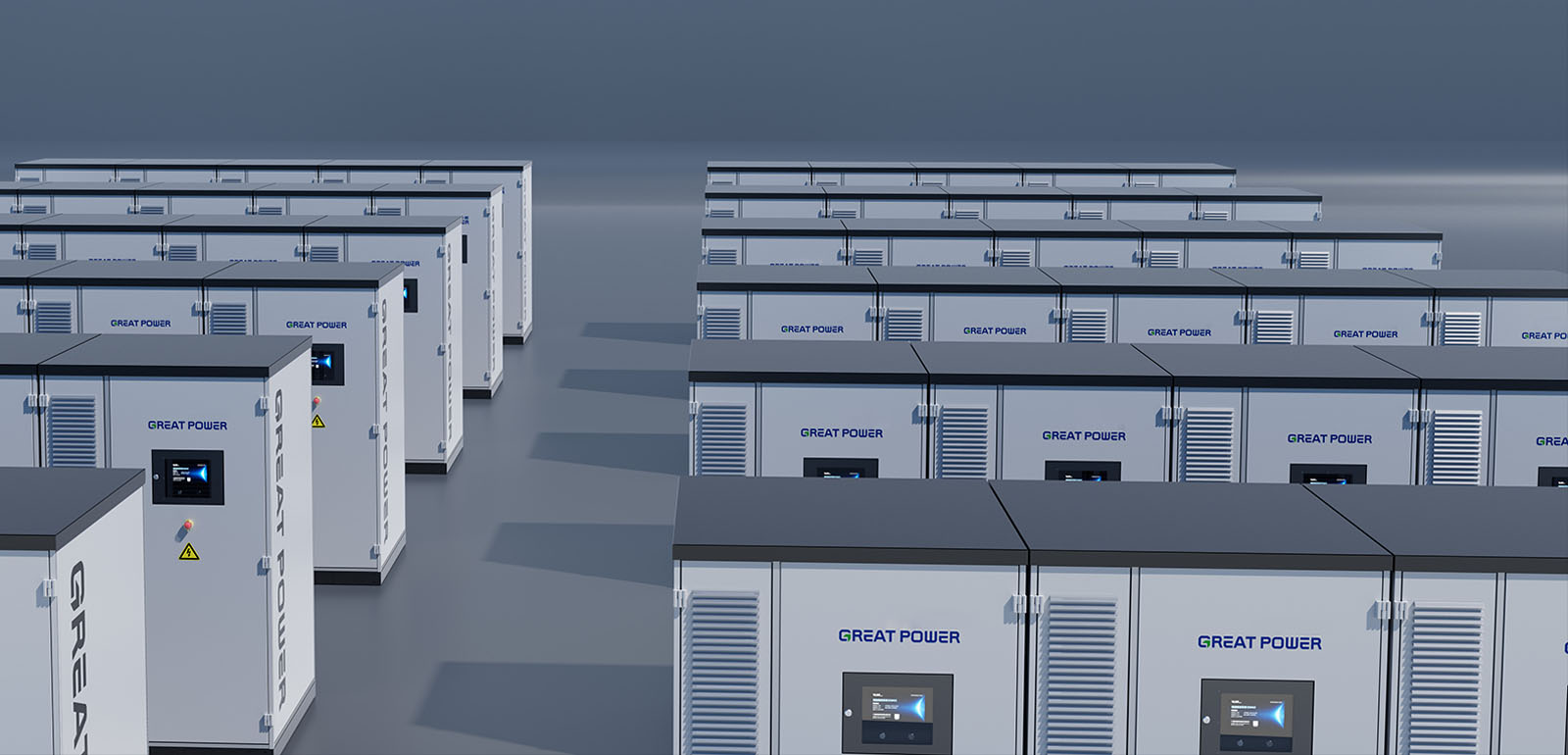

Reference Projects of Utility-scale

Reference Projects of Utility-scale
